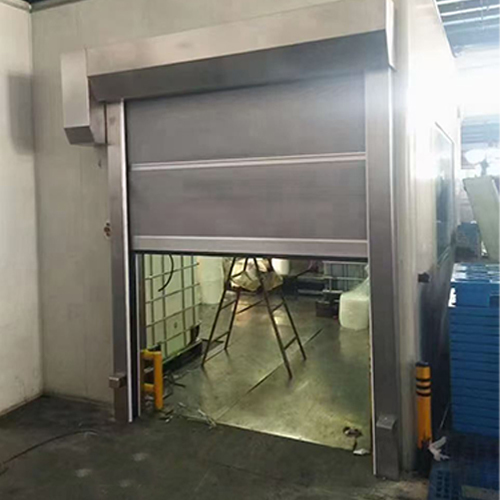

Wide Size Range Design Industrial High Speed Door For Warehouse
The Industrial High Speed Door for Warehouse is designed to improve efficiency, safety, and environmental control in modern warehouses and logistics facilities.
With fast opening speed, durable construction, and reliable safety systems, this high-speed door supports high-frequency forklift traffic and continuous material flow. Tight sealing helps reduce dust, airflow loss, and temperature exchange between warehouse zones, making it an ideal solution for busy storage and distribution environments.
Product Features
-
High-Speed Operation: Opening speed up to 1.2 m/s (adjustable), closing speed 0.6 m/s
-
Wide Size Range: Door width 1000–6000 mm, height 1500–6000 mm
-
Curtain Material: PVC curtain, 0.8–2.0 mm thickness
-
Frame Material: Galvanized steel (standard), stainless steel optional
-
Advanced Control System: DSP-based servo system with LED fault display
-
Sealing System: Side brush seals with bottom airbag or soft safety edge
-
Flexible Activation: Push button, radar sensor, ground loop, pull rope, or remote control
-
Manual Override: Emergency manual opening during power failure
Key Benefits
Efficient logistics require fast and reliable access.
-
Servo Motor with Closed-Loop Control: Torque, position, and speed loops ensure smooth and precise door movement
-
High-Frequency Capability: Designed for 1,000+ cycles/day without performance loss
-
Adjustable Speed: Opening speed up to 1.2 m/s, closing speed 0.6 m/s, adjustable for forklift safety
-
Operational Safety: LED fault display, reverse wiring protection, and emergency manual operation
This system helps warehouses increase throughput, reduce congestion, and improve overall operational efficiency.
Applications
-
General warehouses
-
Logistics and distribution centers
-
Loading and unloading zones
-
Forklift traffic passages
-
Automated storage and handling systems
Contact Us:
Email:yohao260105@gmail.com
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Specifications
| Parameter | Description |
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Frequently Asked Questions (FAQ)
Q1: What is an industrial high speed door for warehouses?
It is a fast-operating door designed to support high-frequency traffic, improve workflow efficiency, and reduce energy loss in warehouse environments.
Q2: Can it handle heavy daily use?
Yes. The servo motor system supports hundreds to over 1,000 cycles per day, making it suitable for busy logistics operations.
Q3: Is it safe for forklifts and workers?
Yes. Infrared sensors, soft bottom edge, and emergency stop systems provide comprehensive safety protection.
Q4: Can the door be customized for different warehouse sizes?
Yes. Door dimensions, materials, control methods, and safety options can be customized to fit specific warehouse requirements.
